In the world of electrical power distribution, transformers play a pivotal role in ensuring efficient and reliable energy transfer. Understanding the differences between single phase and three phase is crucial for engineers and professionals working in the field of electrical engineering. In this blog post, we’ll delve into the distinctions between single-phase and three-phase transformers, explore why three-phase transformers are preferred in many scenarios, and touch upon the significance of banked single-phase pole mounts, particularly in overhead power distribution.
Single Phase vs. Three Phase Transformers:
Basic Structure:
Single Phase: Single-phase transformers consist of two windings – primary and secondary – and are designed to handle power distribution in residential and light commercial applications. Single phase transformers can be made into a pole mounted transformer or a pad mounted transformer.
Three Phase: Three-phase transformers have three sets of windings connected in either a delta (Δ) or a wye (Y) configuration. These transformers are commonly employed in industrial and high-power applications. Three phase transformers can also be made into pad mounted transformers and pole mounted transformers, albeit three phase pole mount transformers are not used very often. Discover the efficiency of three-phase power systems through the integration of pole mount transformers. By banking three pole mount transformers, a robust three-phase system is established. Interested in exploring more about transformers? Dive into our comprehensive blog post, 10 Applications for Pad Mounted Transformers, where we delve into the practical uses and advantages of pad mounted transformers in various scenarios.
Voltage and Power Distribution:
Single Phase: Single-phase transformers are suitable for low-power applications and are commonly found in households and small businesses.
Three Phase: Three-phase transformers are more adept at handling high-power applications and are widely used in industrial settings. They provide a more balanced power distribution compared to single-phase transformers.
Efficiency and Power Factor:
Single Phase: Single-phase systems may experience lower efficiency and power factor compared to three-phase systems.
Three Phase: Three-phase systems offer better efficiency and a higher power factor, resulting in more stable and efficient power transmission.

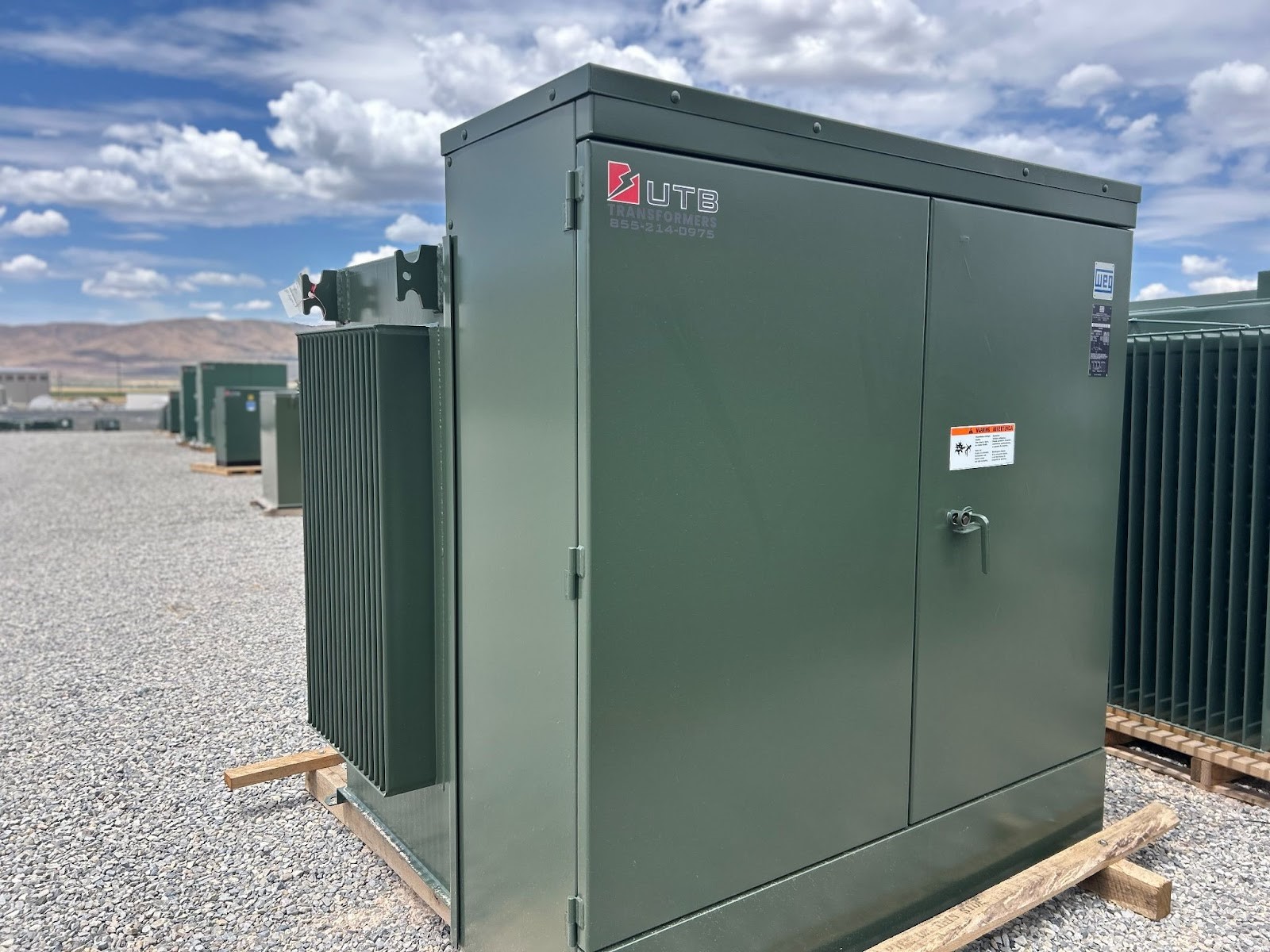

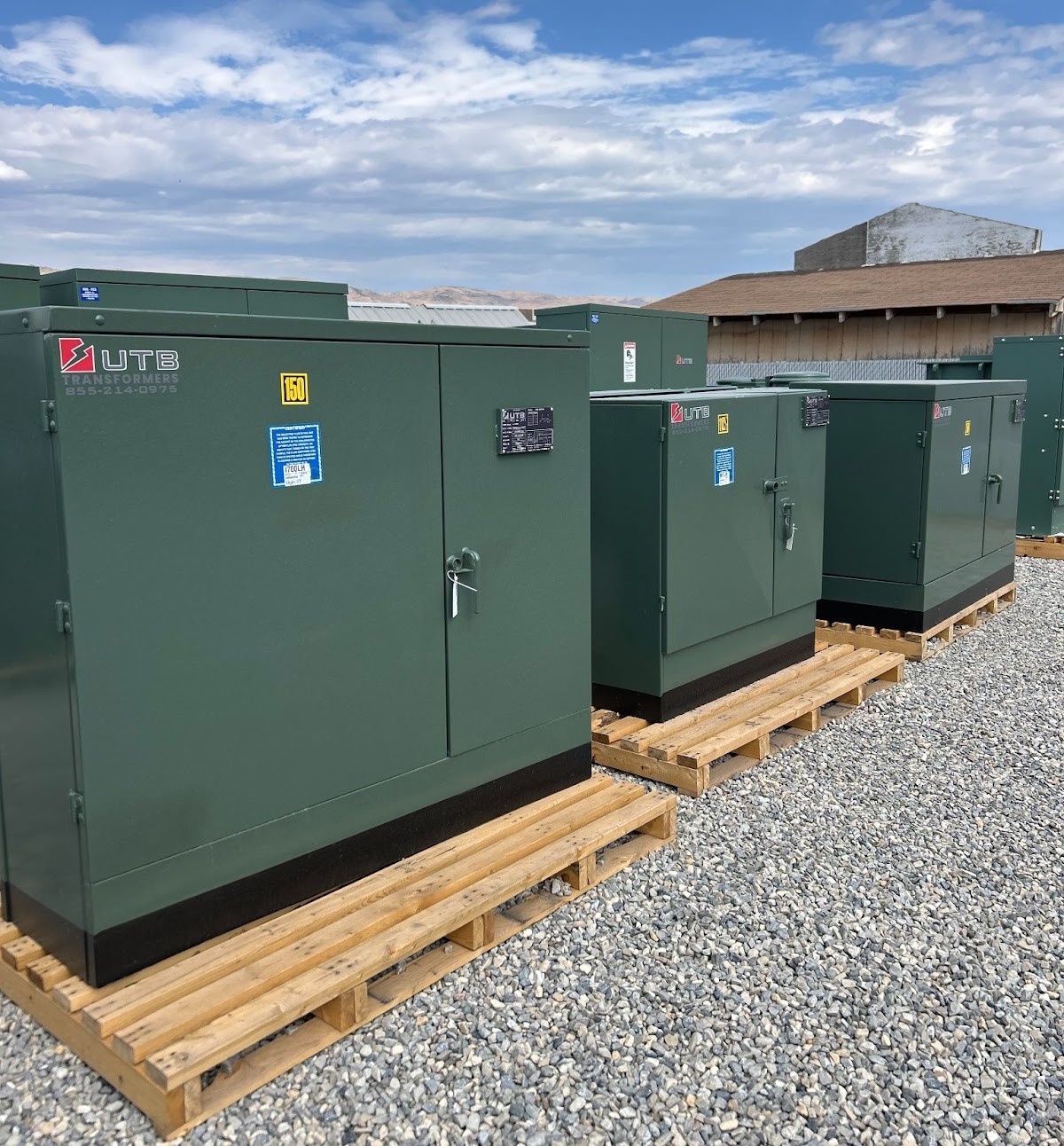

Advantages of Three-Phase Pad Mounted Transformers:
Even Power Distribution:
One of the primary reasons three-phase transformers are preferred is the even distribution of power. The power delivered in a three-phase system is smoother and more constant than that in a single-phase system.
Greater Capacity:
Three-phase transformers allow for the construction of larger units, making them ideal for high-capacity applications such as industrial power distribution and large-scale machinery.
Banked Single-Phase Pole Mounts:
In certain scenarios, especially in overhead power distribution, three banked single-phase pole mounts become a practical solution. These transformers are mounted on utility poles and arranged in banks to be three phase for areas where three phase pad mounted transformers can’t fit. Here are some key points:
Flexibility in Design:
Banked single phase pole mounts offer flexibility in design, allowing engineers to tailor the configuration to the specific requirements of the distribution network.
Ease of Maintenance:
The overhead nature of these transformers makes them accessible for maintenance, reducing downtime and ensuring continuous power supply.
Single Phase Transformer Use Cases:
Residential Power Distribution:
Single-phase transformers are commonly used in residential areas to step down the high voltage from the power grid to a lower voltage suitable for household use (e.g., 120/240V in the United States)
In the dynamic world of electrical power distribution, the choice between single-phase and three-phase transformers depends on the specific requirements of the application. While single-phase transformers are suitable for lighter loads, three-phase transformers shine in high-capacity, industrial settings. Understanding the advantages of three-phase systems, as well as the single-phase units for smaller load cases.
